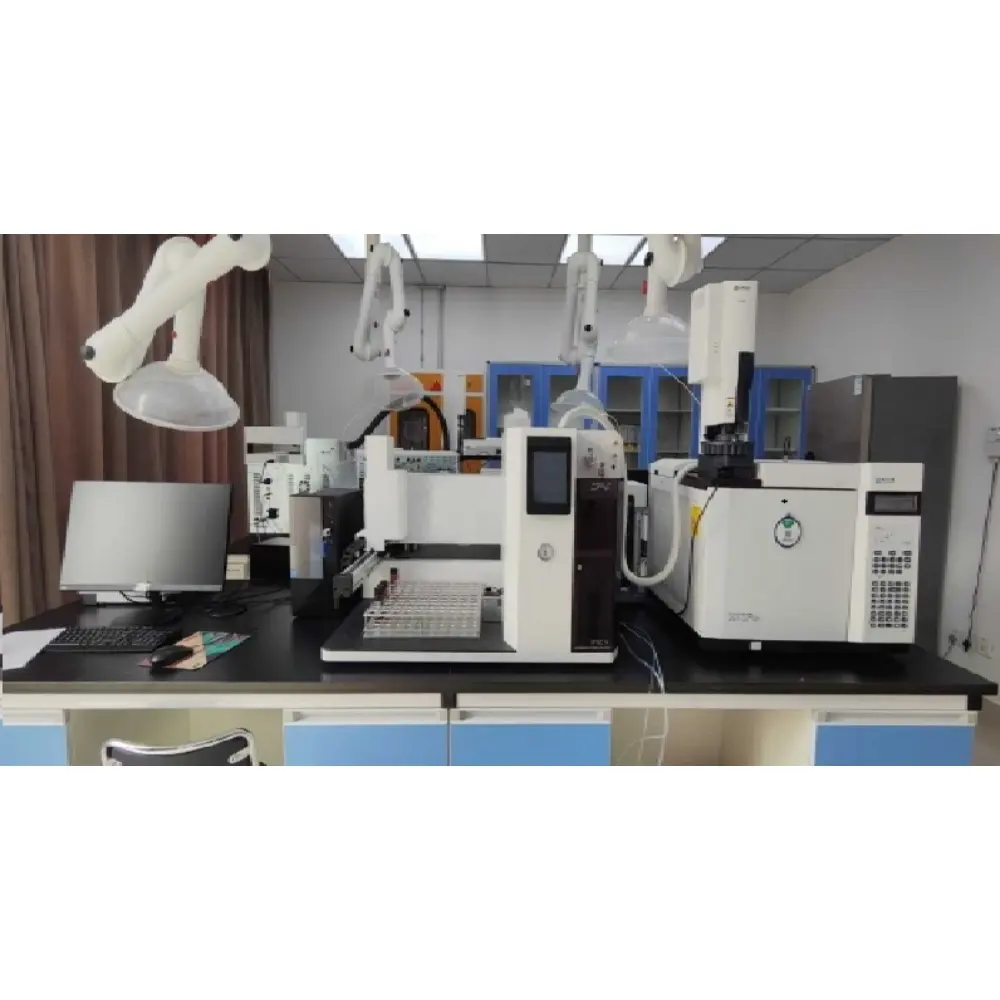

Fully Automated Purge and Trap System

VOC Sample Preparation with Built-in 100-Position Autosampler

Designed for seamless hyphenation with any brand of Gas Chromatography (GC) or Gas Chromatography-Mass Spectrometry (GC-MS) systems, the PTC-V delivers unparalleled analytical efficiency. Thanks to its patented moisture removal technology, precise Electronic Flow Control (EFC/AFC), and superior trap desorption rates, it minimizes water interference and ensures highly reproducible, stable, and accurate VOC analysis.

Applications & Compliance

Ideal for high-throughput laboratories, the PTC-V is widely used in:

• Environmental Analysis: Drinking water, wastewater, and soil organic pollutant testing.
• Food & Beverage: Analysis of volatile flavor compounds and odor components.

The system fully complies with stringent environmental analytical standards, including:

• HJ639-2012 (Water Quality – Determination of VOCs by P&T/GC-MS)
• HJ686-2014 (Water Quality – Determination of VOCs by P&T/GC)
• HJ605-2011 (Soil and Sediment – Determination of VOCs by P&T/GC-MS)

Key Features

Universal & Fully Automated

Universal Compatibility: Plug-and-play integration with any GC or GC-MS brand on the market.

Unattended Operation: Simply load vials into the 100-position tray; the comprehensive software handles all operations automatically, ensuring exceptional sample reproducibility.

Automated Internal Standards: Automatically adds internal standards to simplify workflows.

Intuitive Touchscreen: A large, built-in LCD touchscreen allows for real-time monitoring of temperatures and operational commands.

Smart Synchronization: Provides a synchronous interface to simultaneously start the GC and workstation upon injection.

Superior Thermal & Cooling Technology

• Advanced Peltier Cooling: The analytical trap utilizes thermoelectric (Peltier) cooling combined with air cooling, achieving temperatures as low as -30°C (at 20°C ambient) to satisfy highly demanding low-temperature enrichment requirements.
• Ultra-Fast Desorption: Direct resistance heating of the trap ensures a blistering heating rate of >3000°C/min, maximizing peak sharpness and resolution.

Maximum Contamination & Moisture Control

• Patented Moisture Management: Significantly reduces the transfer of water vapor to the GC/GC-MS, protecting your analytical columns and detector.
• Smart Foam Sensor: Built-in sensor detects foaming inside the purge tube, instantly protecting the sample lines and the entire analytical system from contamination.
• Inert Sample Pathways: All sample lines are constructed from PEEK or silanized inert stainless steel to eliminate carryover and active sites.
• Zero Cold Spots: All transfer lines and the 6-port valve are temperature-controlled, eliminating cold spots and preventing sample loss.
• Isolated Backflush: Trap and purge tube backflush gas paths are separated. Desorbed compounds from the trap are physically prevented from flowing back into the purge tube, eliminating cross-contamination.
• Heated Water Rinse: Supports hot distilled water rinsing of lines and the purge tube, alongside customizable cleaning cycles for both the sampling needle and purge tube.
• Direct Solid Sample Processing: Solid sample vials can be heated and injected with distilled water directly for in-vial magnetic stirring and purging.

Technical Specifications

Operating Conditions

• Power Supply: 220VAC ±22VAC, 50Hz ±0.5Hz
• Backflush Carrier Gas Pressure: ≤ 0.4 MPa
• Ambient Temperature: +5°C to +35°C
• Relative Humidity: ≤ 85%
